System File Choosercomes in v3.7

Class SystemFileChooser (in package com.formdev.flatlaf.util) allows using operating system file dialogs in Java Swing applications.

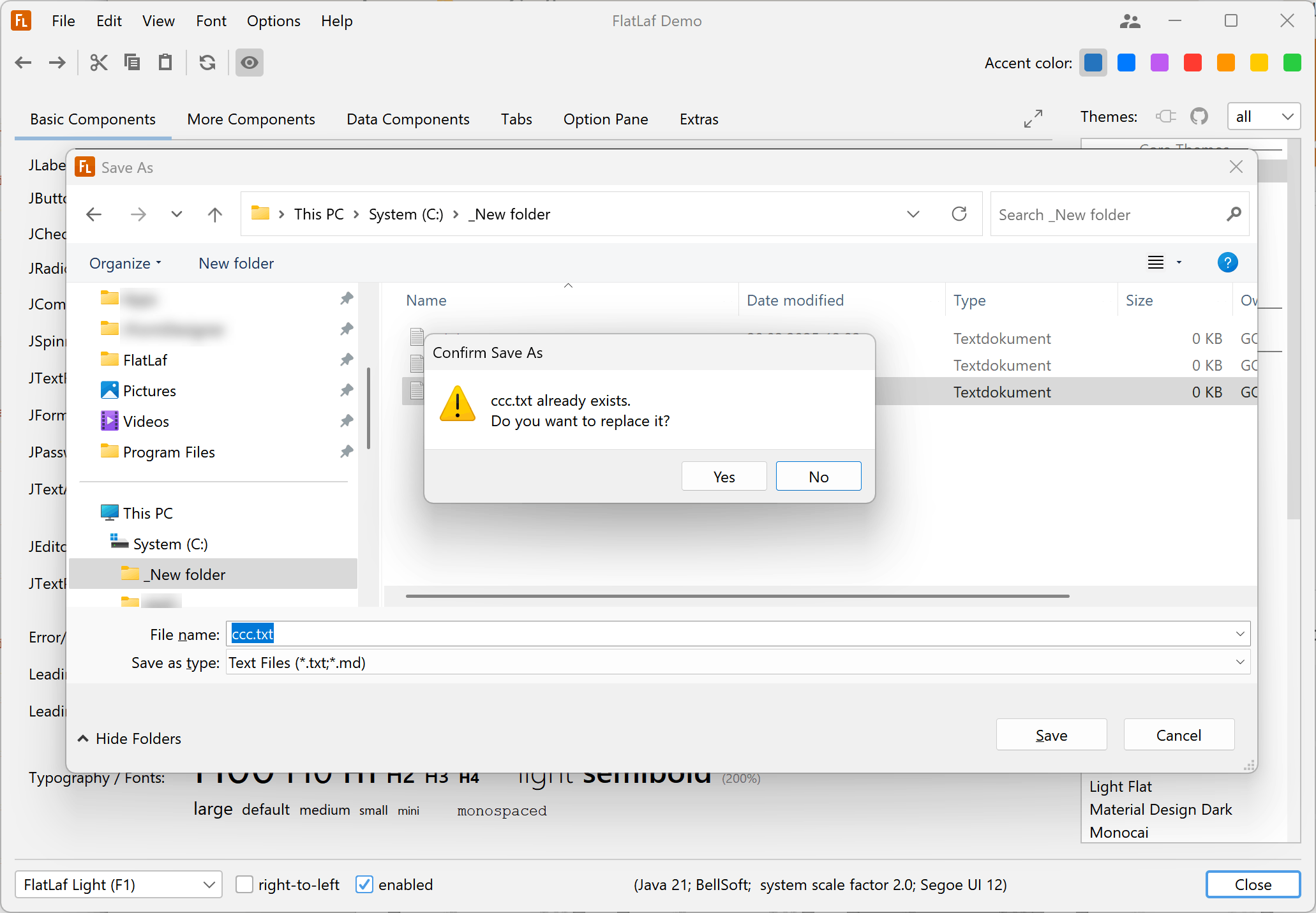

Windows

macOS

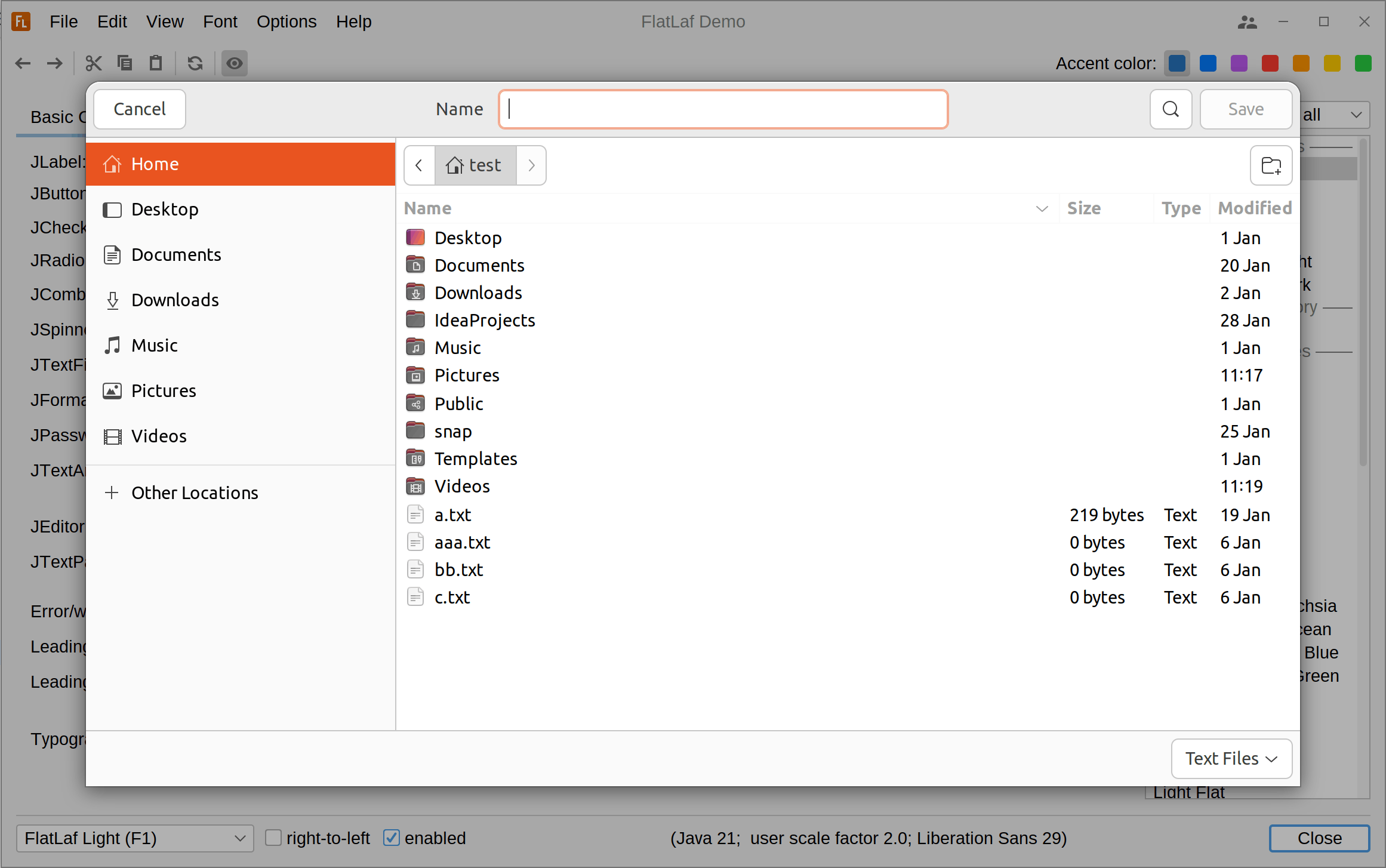

Linux

Description

There are some limitations and incompatibilities to JFileChooser because operating system file dialogs do not offer all features that JFileChooser provides. On the other hand, operating system file dialogs offer features out of the box that JFileChooser do not offer (e.g. ask for overwrite on save). So this class offers only features that are available on all platforms.

The API is (mostly) compatible with JFileChooser. To use SystemFileChooser in existing code, do a string replace from JFileChooser to SystemFileChooser. If there are no compile errors, then there is a good chance that it works without further changes. If there are compile errors, then you're using a feature that SystemFileChooser does not support.

Supported platforms are Windows 10+, macOS 10.14+ and Linux with GTK 3. JFileChooser is used on unsupported platforms or if GTK 3 is not installed.

SystemFileChooser requires FlatLaf native libraries (usually contained in flatlaf.jar). If not available or disabled (via system property flatlaf.useNativeLibrary or flatlaf.useSystemFileChooser), then JFileChooser is used.

To improve user experience, it is recommended to use a state storage, so that file dialogs open at previously visited folder.

Usage

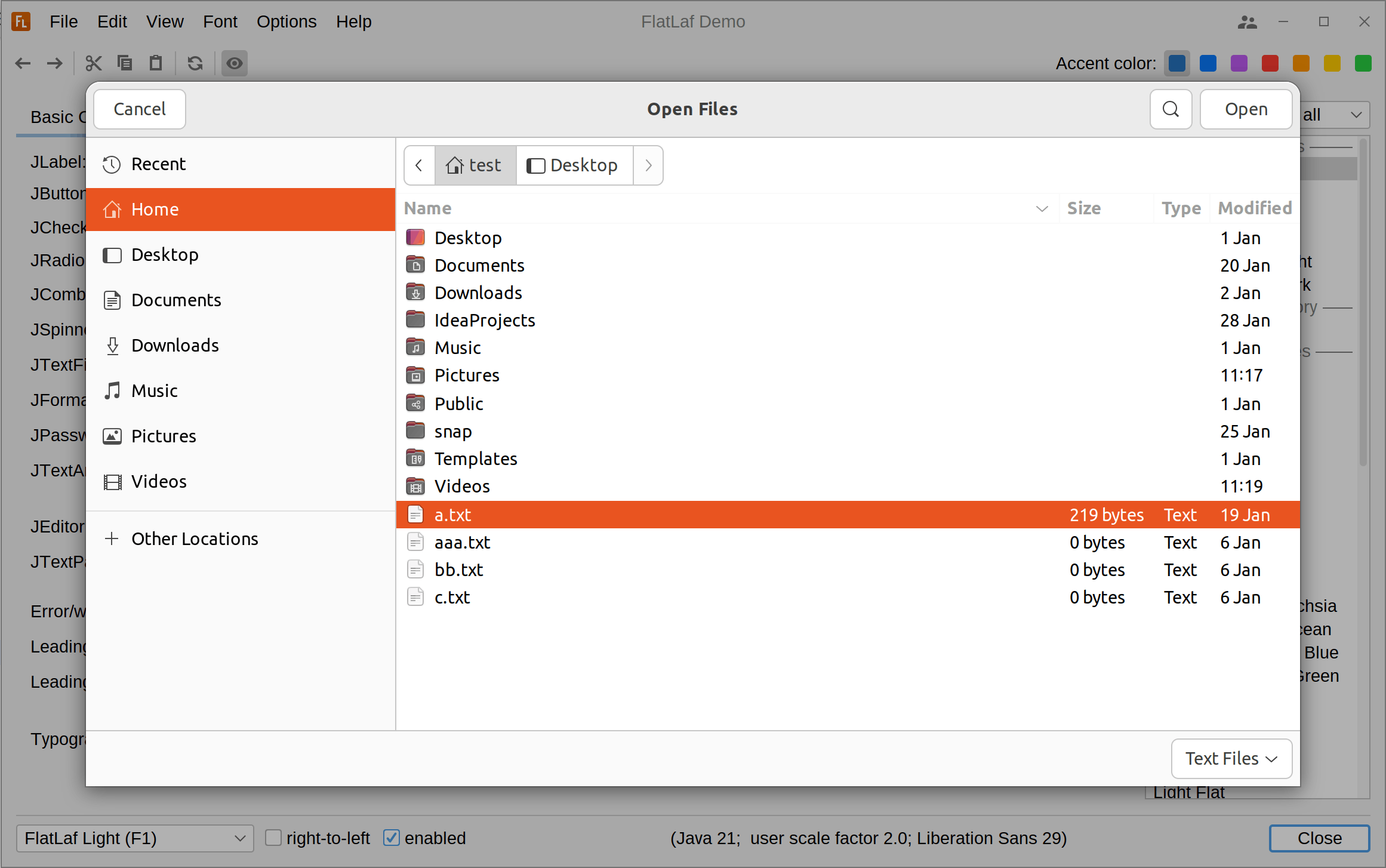

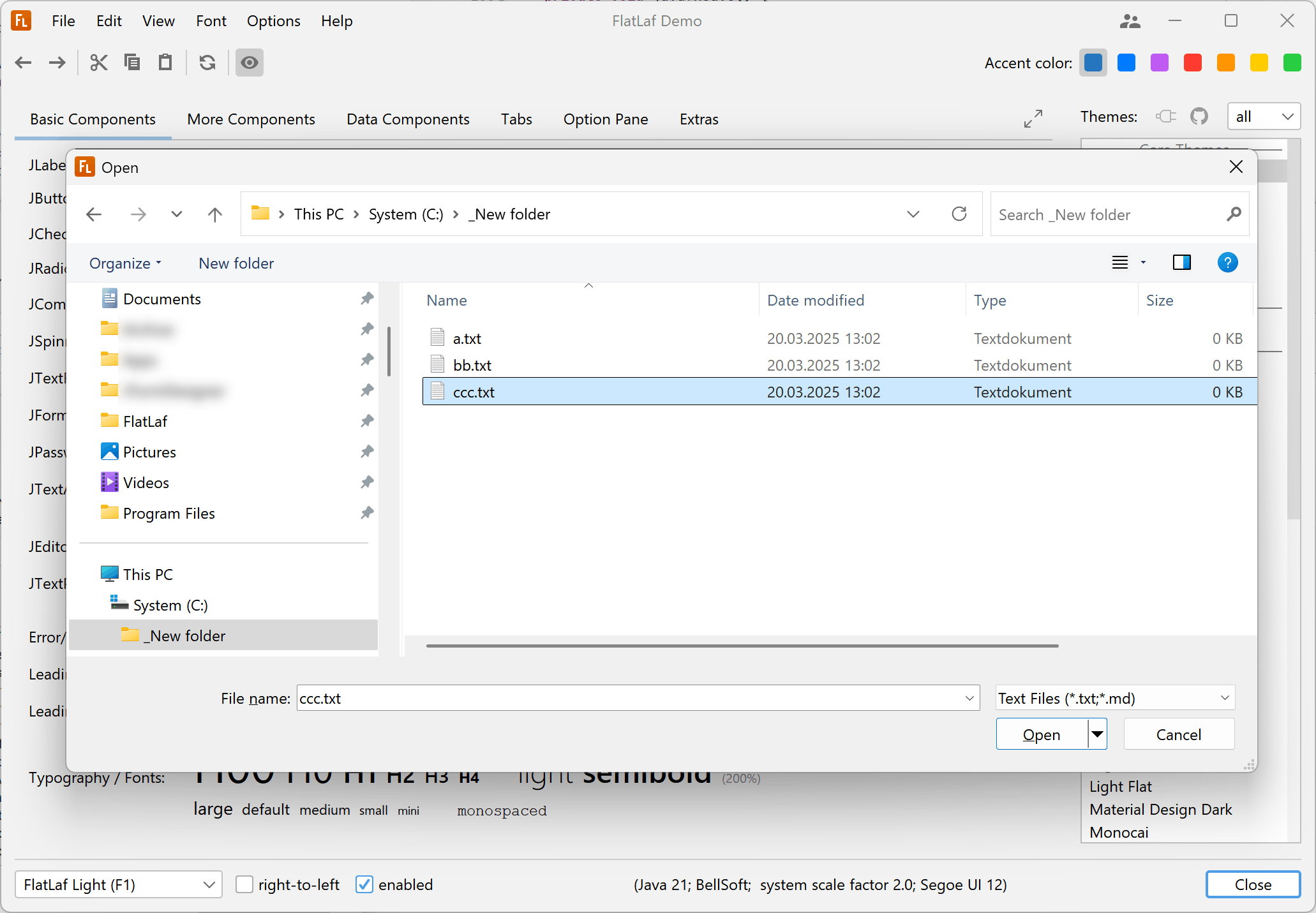

Open Single File

SystemFileChooser fc = new SystemFileChooser();
if( fc.showOpenDialog( this ) == SystemFileChooser.APPROVE_OPTION ) {
    File file = fc.getSelectedFile();
    System.out.println( file );
}

Open Multiple Files

SystemFileChooser fc = new SystemFileChooser();
fc.setMultiSelectionEnabled( true );
if( fc.showOpenDialog( this ) == SystemFileChooser.APPROVE_OPTION ) {
    File[] files = chooser.getSelectedFiles();
    System.out.println( Arrays.toString( files ).replace( ",", "\n" ) );
}

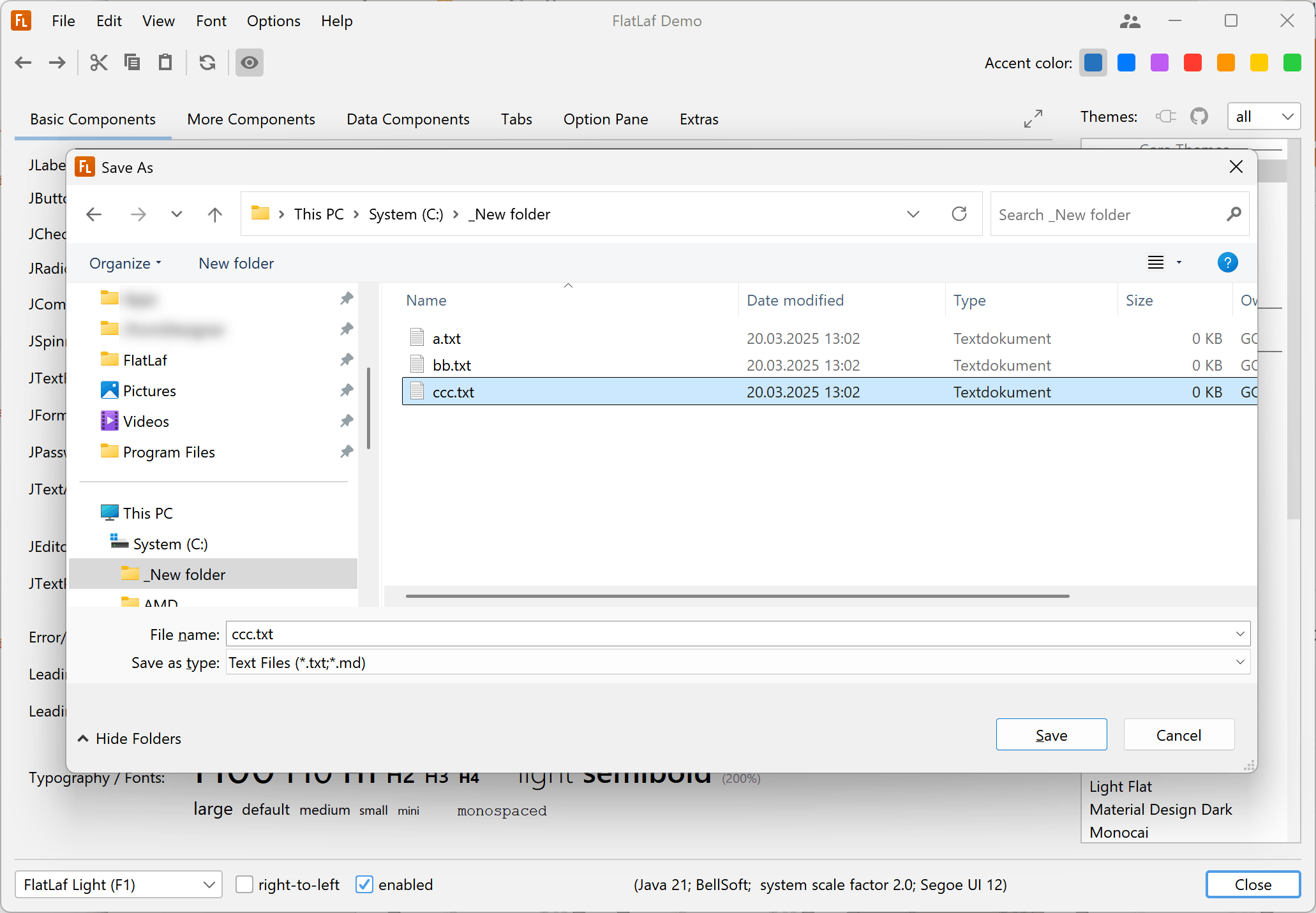

Save File

SystemFileChooser fc = new SystemFileChooser();
if( fc.showSaveDialog( this ) == SystemFileChooser.APPROVE_OPTION ) {
    File file = fc.getSelectedFile();
    System.out.println( file );
}

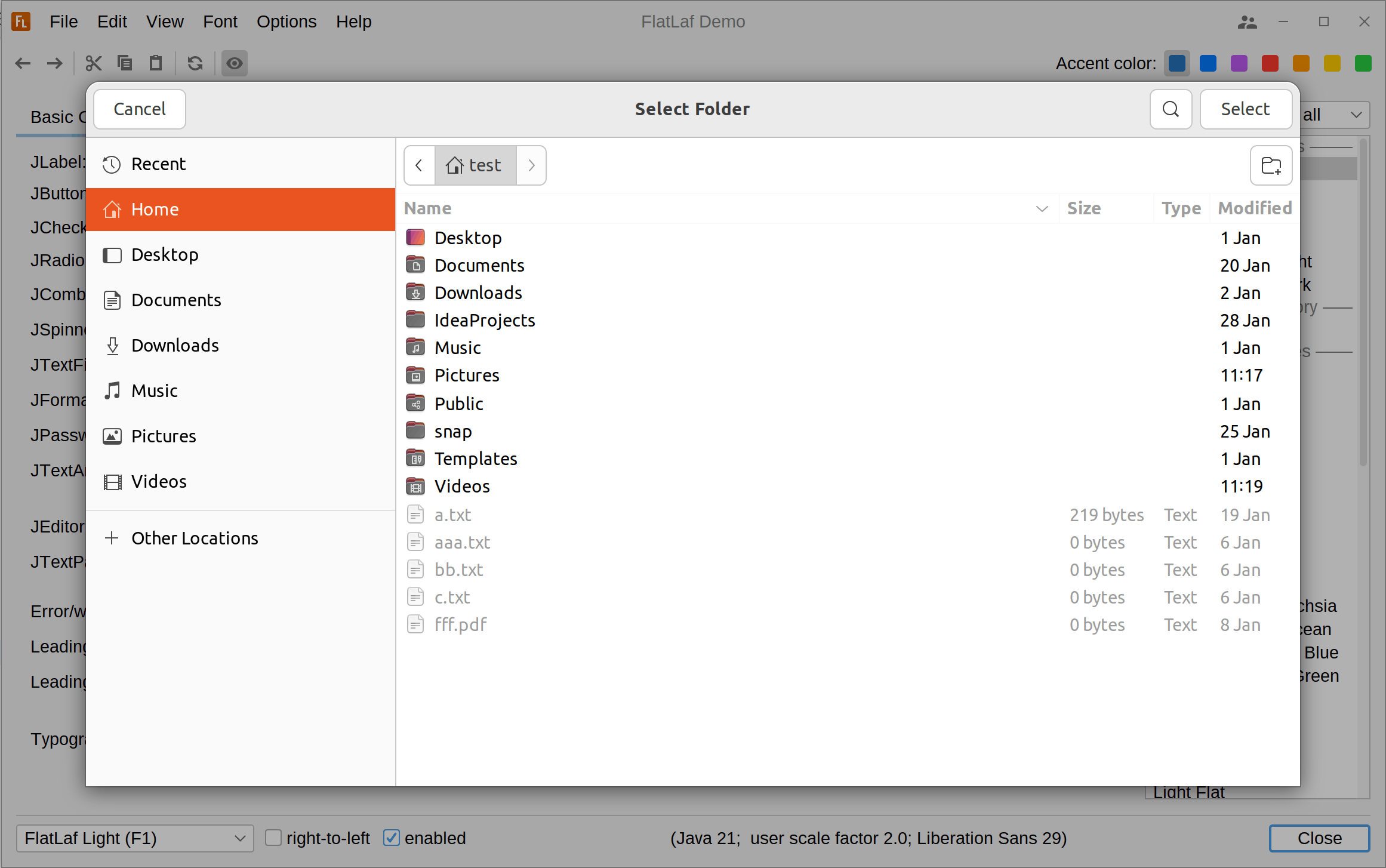

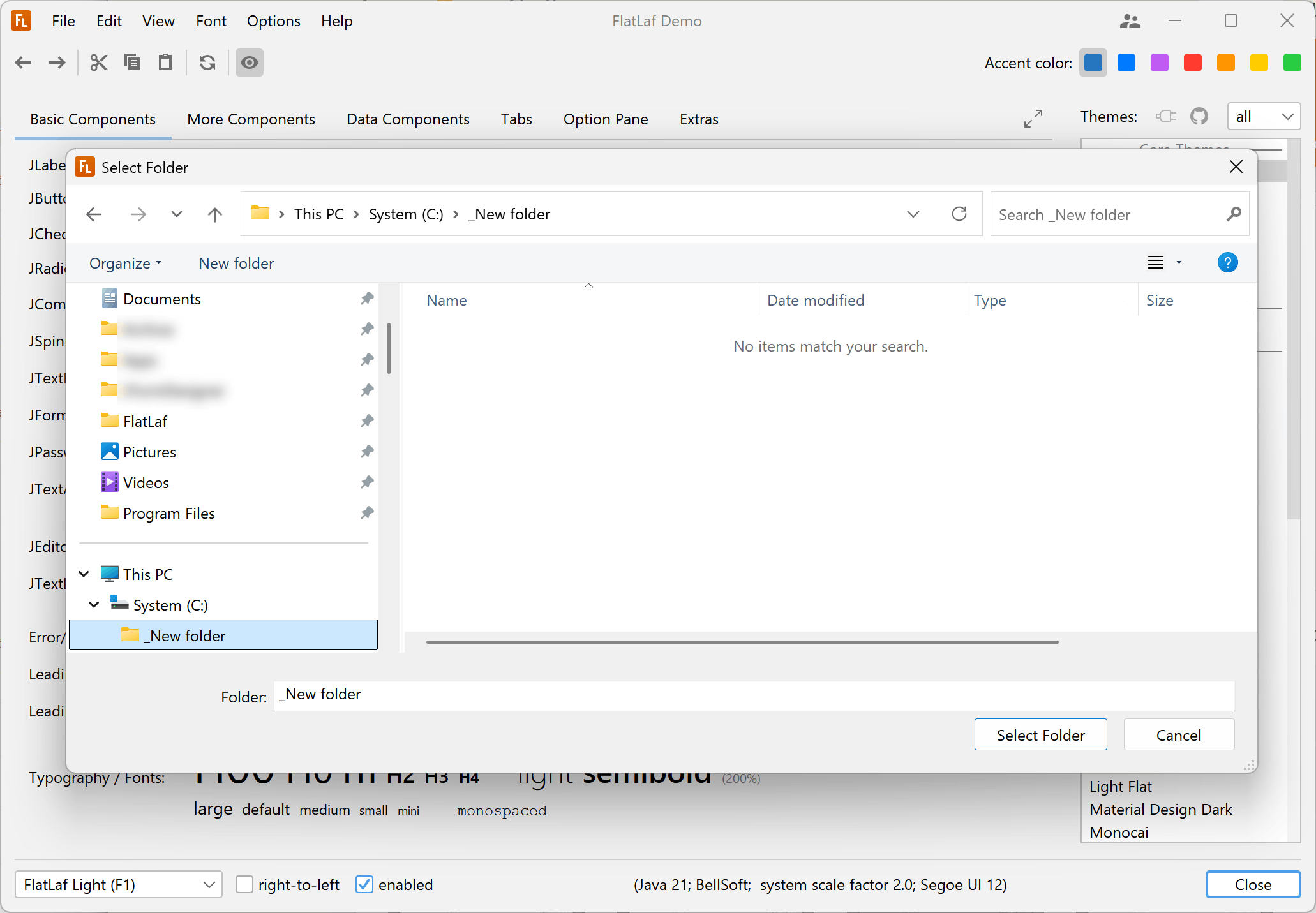

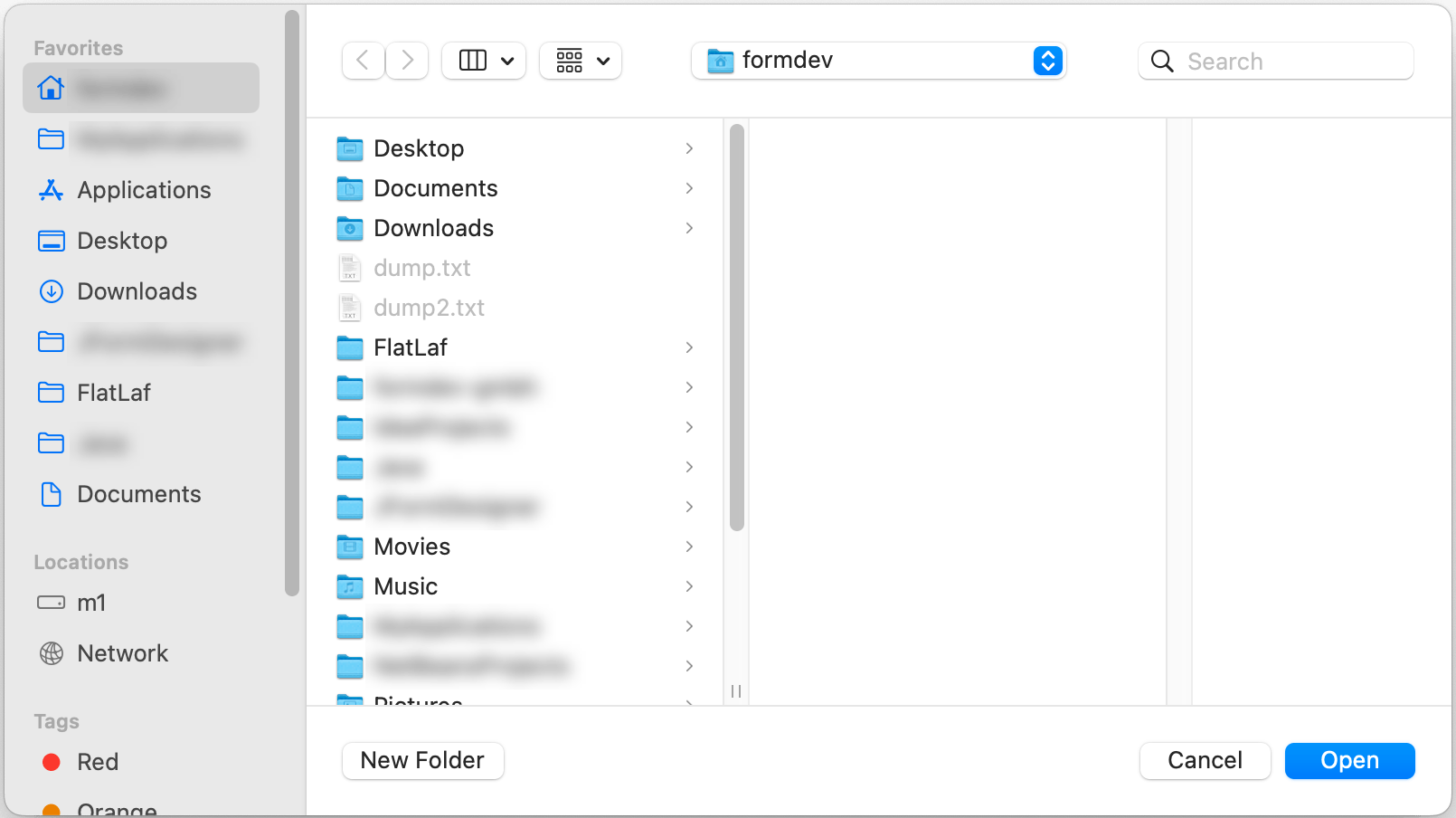

Select Folder

SystemFileChooser fc = new SystemFileChooser();
fc.setFileSelectionMode( SystemFileChooser.DIRECTORIES_ONLY );
if( fc.showOpenDialog( this ) == SystemFileChooser.APPROVE_OPTION ) {
    File directory = fc.getSelectedFile();
    System.out.println( directory );
}

File Filters

fc.addChoosableFileFilter(
    new SystemFileChooser.FileNameExtensionFilter( "Text Files", "txt", "md" ) );
fc.addChoosableFileFilter(
    new SystemFileChooser.FileNameExtensionFilter( "PDF Files", "pdf" ) );
fc.addChoosableFileFilter(
    new SystemFileChooser.FileNameExtensionFilter( "Archives", "zip", "tar", "jar", "7z" ) );

Approve Callback

fc.setApproveCallback( (selectedFiles, context) -> {
    // do something
    return SystemFileChooser.APPROVE_OPTION; // or SystemFileChooser.CANCEL_OPTION
} );

or

fc.setApproveCallback( this::approveCallback );

private boolean approveCallback( File[] selectedFiles, ApproveContext context ) {
    // do something
    return SystemFileChooser.APPROVE_OPTION; // or SystemFileChooser.CANCEL_OPTION
}

Sets a callback that is invoked when user presses "OK" button (or double-clicks a file). The file dialog is still open. If the callback returns SystemFileChooser.CANCEL_OPTION, then the file dialog stays open. If it returns SystemFileChooser.APPROVE_OPTION (or any value other than SystemFileChooser.CANCEL_OPTION), the file dialog is closed and the show...Dialog() methods return that value.

The callback has two parameters:

• File[] selectedFiles - one or more selected files
• SystemFileChooser.ApproveContext context - context object that provides additional methods

WARNING: Do not show a Swing dialog from within the callback. This will not work!

Instead, use ApproveContext.showMessageDialog(int, String, String, int, String...), which shows a modal system message dialog as child of the file dialog.

fc.setApproveCallback( (selectedFiles, context) -> {
    if( !selectedFiles[0].getName().startsWith( "blabla" ) ) {
        context.showMessageDialog( JOptionPane.WARNING_MESSAGE,
            "File name must start with 'blabla' :)", null, 0 );
        return SystemFileChooser.CANCEL_OPTION;
    }
    return SystemFileChooser.APPROVE_OPTION;
} );

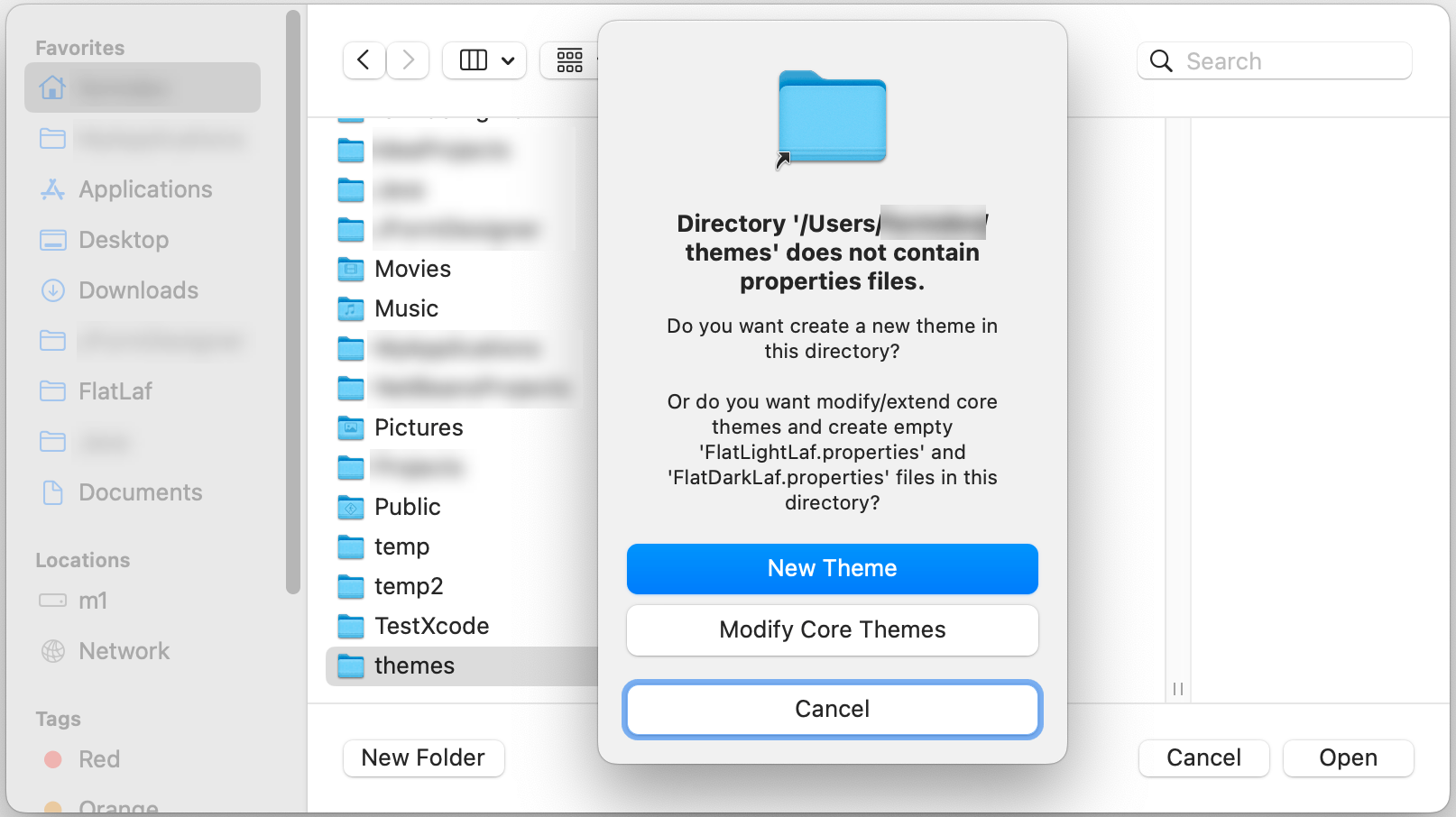

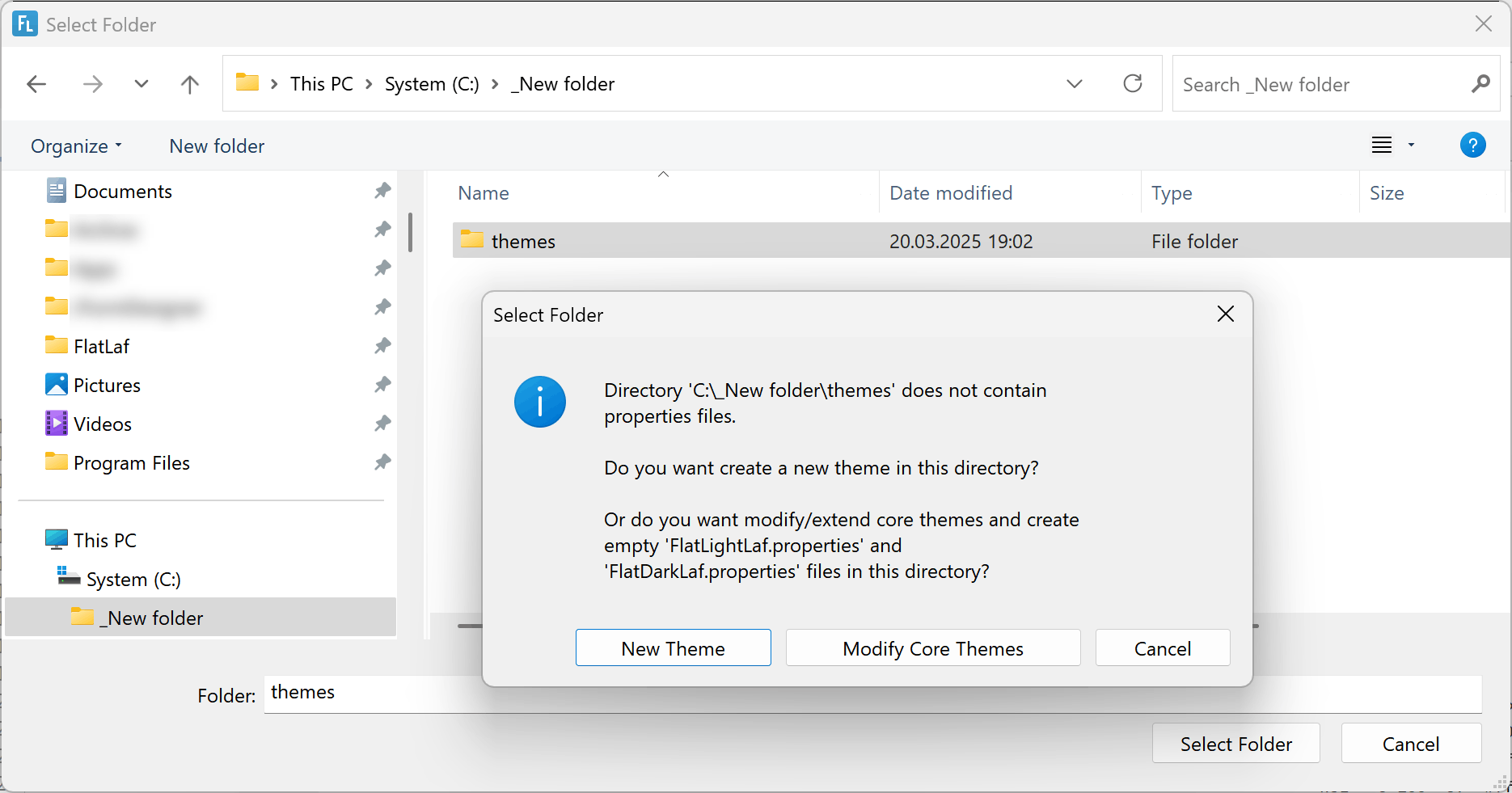

This message dialog supports various icons (information, warning, error, question and plain), primary and secondary message texts, and multiple custom buttons:

Platform specific properties

Platform properties allow using file dialog features that exist only on specific platforms. For supported platform properties see SystemFileChooser.WINDOWS_, SystemFileChooser.MAC_ and SystemFileChooser.LINUX_ constants. E.g.:

fc.putPlatformProperty( SystemFileChooser.WINDOWS_FILE_NAME_LABEL, "My filename label:" );
fc.putPlatformProperty( SystemFileChooser.MAC_TREATS_FILE_PACKAGES_AS_DIRECTORIES, true );

State Storage

SystemFileChooser can remember last visited folder in some kind of application state storage. You need to implement interface SystemFileChooser.StateStore and set it once. Following example uses java.util.prefs.Preferences:

SystemFileChooser.setStateStore( new SystemFileChooser.StateStore() {
    private static final String KEY_PREFIX = "fileChooser.";

    private final Preferences state = Preferences.userRoot().node( "my-application" );

    @Override
    public String get( String key, String def ) {
        return state.get( KEY_PREFIX + key, def );
    }

    @Override
    public void put( String key, String value ) {
        if( value != null )
            state.put( KEY_PREFIX + key, value );
        else
            state.remove( KEY_PREFIX + key );
    }
} );

To avoid conflicts with other application state/preferences, it is a good idea to either add a prefix to the key (as KEY_PREFIX in above example), or use an independent node/folder for file chooser state storage (e.g. Preferences.userRoot().node( "my-application/filechooser" )).

State Storage ID

By specifying an ID, an application can have different persisted states for different kinds of file dialogs within the application. E.g. Import/Export file dialogs could use a different ID then Open/Save file dialogs.

fc.setStateKeyPrefix( "im-export" );

Limitations/incompatibilities compared to JFileChooser

• Open File and Select Folder dialogs always warn about not existing files/folders. The operating system shows a warning dialog to inform the user. It is not possible to customize that warning dialog. The file dialog stays open.

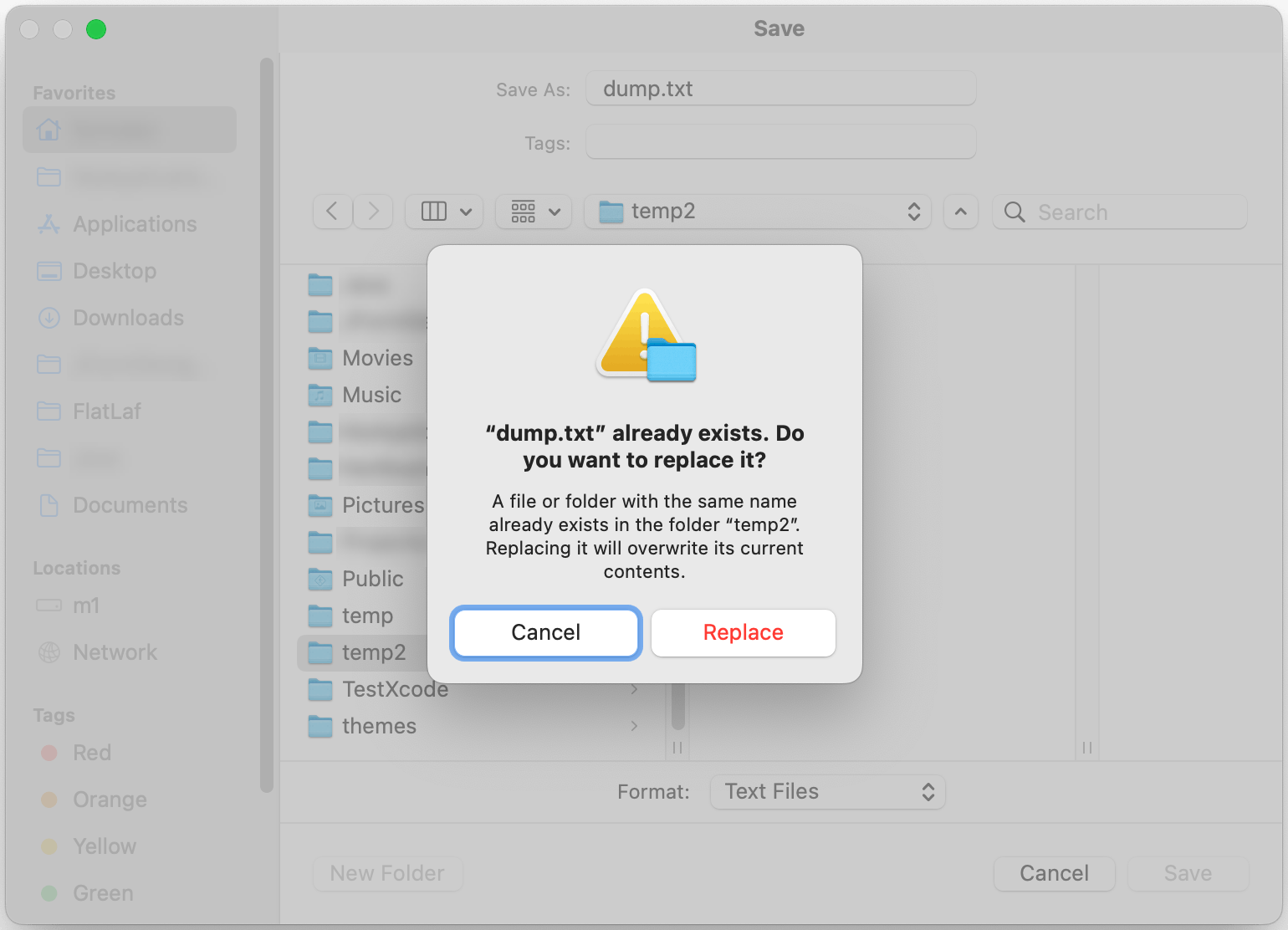

• Save File dialog always asks whether an existing file should be overwritten. The operating system shows a question dialog to ask the user whether he wants to overwrite the file or not. If user selects "Yes", the file dialog closes. If user selects "No", the file dialog stays open. It is not possible to customize that question dialog.
• Save File dialog does not support multi-selection.
• For selection mode SystemFileChooser.DIRECTORIES_ONLY, dialog type SystemFileChooser.SAVE_DIALOG is ignored. Operating system file dialogs support folder selection only in "Open" dialogs.
• JFileChooser.FILES_AND_DIRECTORIES is not supported.
• SystemFileChooser.getSelectedFiles() returns selected file also in single selection mode. JFileChooser.getSelectedFiles() only in multi selection mode.
• Only file name extension filters (see SystemFileChooser.FileNameExtensionFilter) are supported.
• If adding choosable file filters and SystemFileChooser.isAcceptAllFileFilterUsed() is true, then the All Files filter is placed at the end of the combobox list (as usual in current operating systems) and the first choosable filter is selected by default. JFileChooser, on the other hand, adds All Files filter as first item and selects it by default. Use fc.addChoosableFileFilter( fc.getAcceptAllFileFilter() ) to place All Files filter somewhere else.
• Accessory components are not supported.
• macOS: By default, the user can not navigate into file packages (e.g. applications). If needed, this can be enabled by setting platform property SystemFileChooser.MAC_TREATS_FILE_PACKAGES_AS_DIRECTORIES to true.
• If no "current directory" is specified, then JFileChooser always opens the users "Documents" folder (on Windows) or "Home" folder (on macOS and Linux).
  SystemFileChooser does the same when first shown, but then remembers last visited folder (either in memory or in a StateStore) and re-uses that folder when SystemFileChooser is shown again.

Disable

You can disable usage of operating system file dialogs by setting system property flatlaf.useSystemFileChooser to false. Then SystemFileChooser uses JFileChooser.

E.g. in Java code:

System.setProperty( "flatlaf.useSystemFileChooser", "false" );
// or
System.setProperty( FlatSystemProperties.USE_SYSTEM_FILE_CHOOSER, "false" );

Or at command line:

-Dflatlaf.useSystemFileChooser=false
