Preferences

This dialog is used to set user preferences.

  • Stand-alone: Select Window > Preferences from the menu to open this dialog.
  • Eclipse plug-in: The JFormDesigner preferences are fully integrated into the Eclipse preferences dialog. Select Window > Preferences from the menu to open it and then expand the node "JFormDesigner" in the tree.
  • NetBeans plug-in: NetBeans uses the term "Options" instead of "Preferences". The JFormDesigner preferences are fully integrated into the NetBeans options dialog. Select Tools > Options from the menu to open it and then select the "JFormDesigner" page.
  • IntelliJ IDEA plug-in: IntelliJ IDEA uses the term "Settings" instead of "Preferences". The JFormDesigner preferences are fully integrated into the IntelliJ IDEA settings dialog. Select File > Settings from the menu to open it, expand the "Other Settings" node and then select the "JFormDesigner" page.
  • JDeveloper plug-in: The JFormDesigner preferences are fully integrated into the JDeveloper preferences dialog. Select Tools > Preferences from the menu to open it.

Pages

Import and export preferences

In the Preferences dialog, you can use the Import (Import Preferences) button to import preferences from a file and the Export (Export Preferences) button to export preferences to a file. This preferences file is compatible with all JFormDesigner editions. On export, you can specify what parts of the preferences you want export.

You can also use IDE specific import/export commands:

  • Eclipse plug-in: You can use the menu commands File > Import and File > Export to import and export preferences to/from Eclipse preferences files.
  • NetBeans plug-in: You can use the Import and Export buttons in the Options dialog to import and export options to/from NetBeans options files.
  • IntelliJ IDEA plug-in: You can use the menu commands File > Import Settings and File > Export Settings to import and export settings to/from IntelliJ IDEA preferences files.
  • JDeveloper plug-in: Import and export of preferences is not supported.

Note: Each IDE uses its own file format for preferences. The only way to transfer preferences between the different JFormDesigner editions is to use JFormDesigner preferences files.

Restore defaults

Use the Restore Defaults (Restore Defaults) button to restore the values of the active page to its defaults.

General

On this page, you can specify general options.

General

Option Description Default
Animate layout changes in Design view If enabled, changes to the layout in the Design view are done animated. On
Animation speed The speed of the animation. default
Buffer Design view in video memory If enabled, parts of the Design view are buffered in the video memory of the graphics card to improve painting speed. On
Undo history size The maximum number of steps in the undo history of a form. 1000
Form file format The format used to persist the form. Since version 5.1, JFormDesigner supports the compact, easy-to-merge and fast-to-load persistence format JFDML. To change the persistence format of an existing form, open the form, select the "(form)" node in the Structure view and change the "Form file format" property in the Properties view. Or use the JFormDesigner command-line tool to convert the format of many forms. JFDML

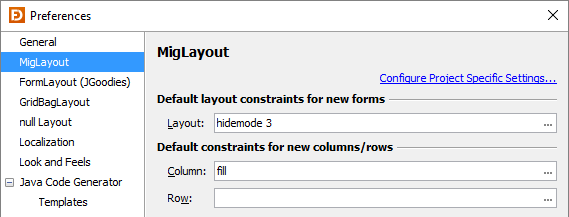

MigLayout

On this page, you can specify MigLayout related options.

MigLayout

Option Description Default
Layout constraints The layout constraints used for new forms/containers. hidemode 3
Column constraints The column constraints used for new columns. fill
Row constraints The row constraints used for new rows.

FormLayout (JGoodies)

On this page, you can specify FormLayout related options.

FormLayout (JGoodies)

Option Description Default
Automatically insert/remove gap columns/rows If enabled, JFormDesigner automatically inserts/removes gap columns/rows. On
JGoodies Forms version Required JGoodies Forms version for the created forms. auto-detect
Column/row templates for new columns/rows Here you can specify the column and row templates that should be used when new columns or rows are inserted.
   Column The column template used for new columns. default
   Column gap The column template used for new gap columns. label component gap
   Row The row template used for new rows. default
   Row gap The row template used for new gap rows. line gap
Custom column/row templates If the predefined templates does not fit to your needs, you can define your own here. Since JGoodies Forms 1.2 you can add these custom column/row templates to the global LayoutMap using the "LayoutMap Initialization Code" link.

Custom column/row templates

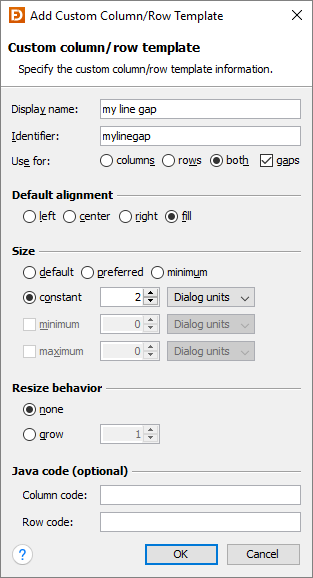

Edit Custom Column/Row Template

Option Description
Display name The display name is used within JFormDesigner whenever the template is shown in combo boxes or popup menus.
Identifier The (unique) identifier is stored in form files. Choose a short string. Only letters and digits are allowed.
Use for Specifies whether the template should be used for columns, rows or both. Also specifies whether it represents a gap column/row.
Default alignment The default alignment of the components within a column/row. Used if the value of the component constraint properties "h align" or "v align" are set to DEFAULT.
Size The width of a column or height of a row. You can use default, preferred or minimum component size. Or a constant size. It is also possible to specify a minimum and a maximum size. Note that the maximum size does not limit the column/row size if the column/row can grow (see resize behavior).
Resize behavior The resize weight of the column/row.
Java code Optional Java code used by the Java code generator. Useful if you have factory classes for ColumnSpecs and RowSpecs. Not available for JGoodies Forms 1.2 and later.

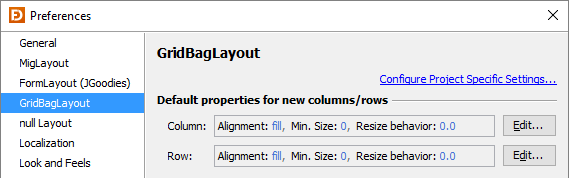

GridBagLayout

On this page, you can specify GridBagLayout related options.

GridBagLayout

Option Description Default
Default properties for new columns/rows Here you can specify the column and row properties that should be used when new columns or rows are inserted.
   Column The column properties used for new columns. fill:0:0.0
   Row The row properties used for new rows. fill:0:0.0

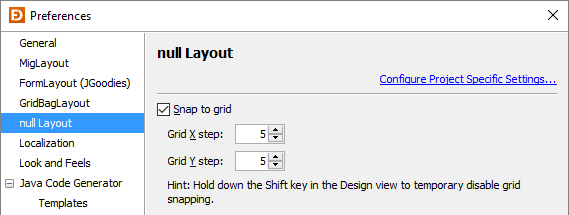

null Layout

On this page, you can specify null layout related options.

null Layout

Option Description Default
Snap to grid If enabled, snap to the grid specified below when moving or resizing a component in null layout. On
Grid X step The horizontal step size of the grid. 5
Grid Y step The vertical step size of the grid. 5

Localization

On this page, you can specify localization related options.

Localization

Option Description Default
Rename resource keys when renaming components If enabled, auto-rename resource keys when renaming components and the resource key contains the old component name. On
Copy localized messages when copying components If enabled, duplicate localized strings in all locales when copying components. On
Delete localized messages when deleting components If enabled, auto-delete localized strings, that were used by the deleted components, from all locales. On
Delete localized messages when internalizing strings If enabled, auto-delete localized strings, that were internalized, from all locales. On
Delete messages only if key prefix is equal to form's key prefix If enabled, messages will be auto-deleted only if their key prefix is equal to the key prefix of the form. On
Insert new messages Specifies where new messages will be inserted into properties files. "next to similar keys" inserts new messages next to other similar keys so that messages that belong together are automatically at the same location in the properties file. "at the end of the properties file" always appends new messages to the end of the properties file. next to similar keys (ascending order)
Format used for generated keys Format used when generating a resource key. ${componentName}
${sep}${propertyName}
Separator used for generated keys Separator used when generating a resource key. '.'
Template for properties files Template used when creating new properties files.
Exclude properties from externalization Specify properties that should be excluded from externalization. Useful when using auto-externalization to ensure that some string property values stay in the Java code.

If the list is focused, you can use the Insert key to add a property or the Delete key to delete selected properties.

Look and Feels

On this page, you can add Swing look and feels for use in the Design view.

Note: Because Swing is not designed to use two look and feels at the same time (application and Design view), it can not guaranteed that each look and feel works without problems. The popular Substance and Synthetica look and feels are not supported.

Look and Feels

If the look and feels list is focused, you can use the Insert key to add a look and feel or the Delete key to delete selected look and feels.

Add Look and Feel

Option Description
Jar path Full path name of the jar file that contains the look and feel classes. Use the Browse button to select a jar.
Name Name of the look and feel used in the look and feel combo box in the Toolbar.
Class name Class name of the look and feel class (derived from javax.swing.LookAndFeel).
License code License code for the commercial Alloy Look and Feel.

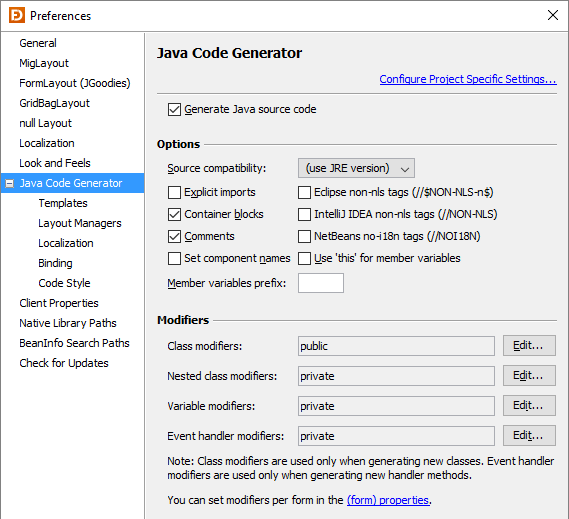

Java Code Generator

On this page, you can turn off the Java code generator and specify other code generation options.

Java Code Generator

Option Description Default
Generate Java source code If enabled, JFormDesigner generates Java source code when you save a form. On
Source compatibility Specifies the compatibility of the generated source code. Besides generating Java 1.x compatible source code, JFormDesigner can also use Java 5 (or later) features in the generated source code (e.g. auto-boxing, @Override, etc). Stand-alone: use JRE version
IDE plug-ins: use project setting
Explicit imports If enabled, the code generator adds explicit import statements (without '*') for used classes. Off
Container blocks If enabled, the code generator puts the initialization code for each container into a block (enclosed in curly braces). On
Comments If enabled, the code generator puts a comment line above the initialization code for each component. On
Set component names If enabled, the code generator inserts java.awt.Component.setName() statements for all components of the form. Off
Use Eclipse code formatter If enabled, the Eclipse code formatter is used to format the generated code. (Eclipse plug-in only) Off
Eclipse non-nls tags (//$NON-NLS-n$) If enabled, the code generator appends non-nls comments to lines containing strings. These comments are used by the Eclipse IDE to denote strings that should not be externalized. Off
IntelliJ IDEA non-nls tags (//NON-NLS) If enabled, the code generator appends non-nls comments to lines containing strings. These comments are used by IntelliJ IDEA to denote strings that should not be externalized. Off
NetBeans no-i18n tags (//NOI18N) If enabled, the code generator appends non-nls comments to lines containing strings. These comments are used by the NetBeans IDE to denote strings that should not be externalized. Off
Use 'this' for member variables If enabled, the code generator inserts 'this.' before all member variables. E.g. this.nameLabel.setText("Name:"); Off
Member variables prefix Prefix used for component member variables. E.g. "m_".
Class modifiers Class modifiers used when generating a new class. Allowed modifiers: public, default, abstract and final. public
Nested class modifiers Class modifiers used when generating a new nested class. Allowed modifiers: public, default, protected, private, abstract, final and static. private
Variable modifiers The default modifiers of the variables generated for components. Allowed modifiers: public, default, protected, private, static and transient. private
Event handler modifiers The default modifiers used when generating event handler methods. Allowed modifiers: public, default, protected, private, final and static. private

You can set additional options per form in the "(form)" properties.

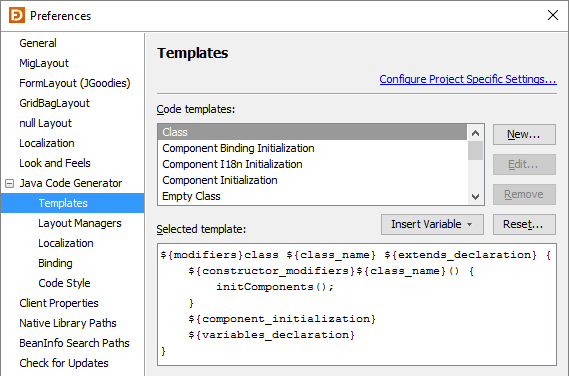

Templates (Java Code Generator)

This page contains templates that are used by the code generator when generating a new class. See Code Templates for details about templates.

Templates (Java Code Generator)

New: Create a new template for a specific superclass.
Edit: Edit the superclass of the selected user-defined template.
Remove: Remove the selected template. Only allowed for user-defined templates.
Reset: Reset the selected predefined template to the default.
Insert Variable: Insert a variable at the current cursor location into the selected template.

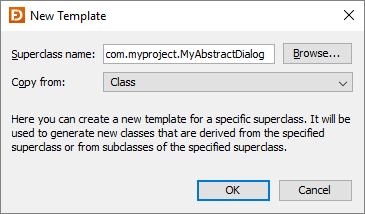

New Template

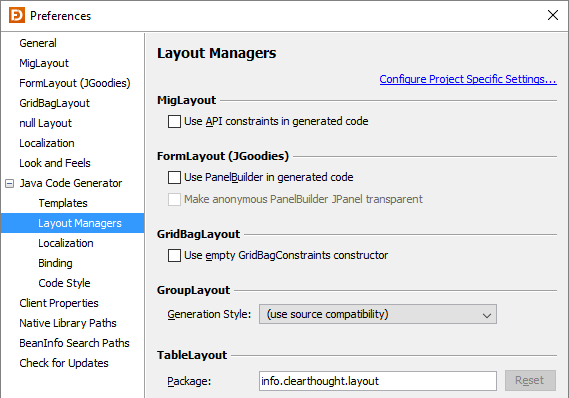

Layout Managers (Java Code Generator)

On this page, you can specify code generation options for some layout managers.

Layout Managers (Java Code Generator)

Option Description Default
Use API constraints in generated code If enabled, then MigLayout API is used to create constraints. Otherwise strings are used. Off
Use PanelBuilder in generated code If enabled, the PanelBuilder class of JGoodies Forms is used for FormLayout. Off
Make anonymous PanelBuilder JPanel transparent If enabled, the JPanel of the PanelBuilder is made transparent. Off
Use empty GridBagConstraints constructor If enabled, the empty GridBagConstraints constructor is used in the generated code, which is necessary for Java 1.0 and 1.1 compatibility. Since Java 1.2, GridBagConstraints has a constructor with parameters, which is used by default. Off
GroupLayout Generation Style Specifies whether class javax.swing.GroupLayout is used, which is part of Java 6 and later. Or whether org.jdesktop.layout.GroupLayout from the Open Source Swing Layout library swing-layout.jar is used, which is also available for Java 1.4 and 5. use source compatibility
(see Java Code Generator preferences page)
TableLayout package Package name used by the Java code generator for TableLayout. Change this only if you have a copy of the original TableLayout in another package. info.clearthought.layout

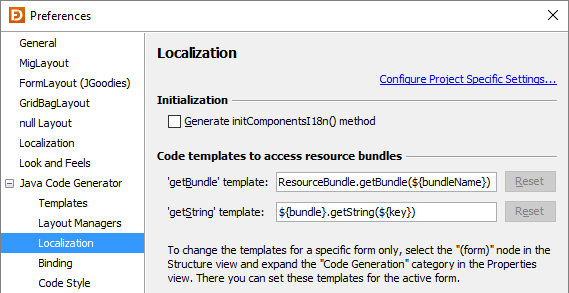

Localization (Java Code Generator)

On this page, you can specify code generation options for localization.

Localization (Java Code Generator)

Option Description Default
Generate initComponentsI18n() method If enabled, the code generator puts the code to initialize the localized texts into a method initComponentsI18n(). You can invoke this method from your code to switch the locale of a form at runtime. You can set this options also per form in the "(form)" properties. Off
'getBundle' template Template used by code generator for getting a resource bundle. ResourceBundle.getBundle
(${bundleName})
'getString' template Template used by code generator for getting a string from a resource bundle. ${bundle}.getString(${key})

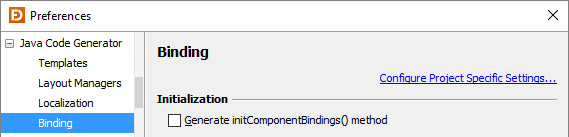

Binding (Java Code Generator)

On this page, you can specify code generation options for Beans Binding (JSR 295).

Binding (Java Code Generator)

Option Description Default
Generate initComponentBindings() method If enabled, the code generator puts the code to create bindings into a method initComponentBindings(). You can set this options also per form in the "(form)" properties. Off

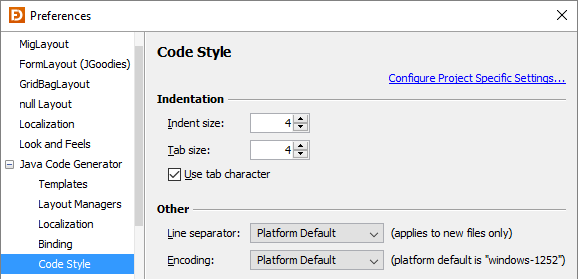

Code Style (Java Code Generator)

Stand-alone: On this page, you can specify code style options, which are used for code generation.

IDE plug-ins: This page is not available in IDE plug-ins because IDEs already have preferences that control code style. JFormDesigner uses the code style settings from IDE projects or preferences.

Code Style (Java Code Generator)

Option Description Default
Indent size The number of spaces used for one indentation level. 4
Tab size The number of spaces that represents one tabulation. 4
Use tab character Specifies whether the tab character (\t) is used for indentation or only space characters. On
Line separator The line separator used for newly created .java and .properies files. Platform default
Encoding The character encoding used for reading and writing Java files. Platform default

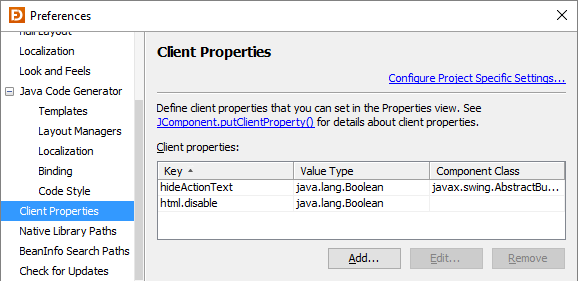

Client Properties

On this page, you can can define client properties, which can be set in the Properties view.

Client Properties

If the client properties list is focused, you can use the Insert key to add a client property or the Delete key to delete selected client properties.

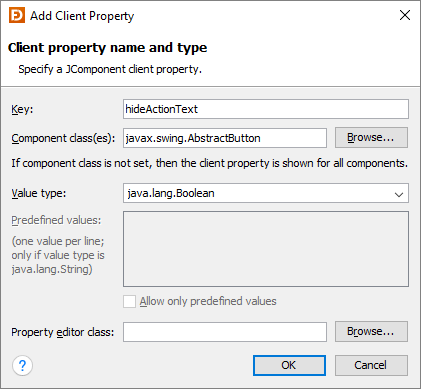

Add Client Property

Option Description
Key The key that identifies the client property.
Component class(es) The component class(es) to which the client property belongs. E.g. if set to javax.swing.JButton, then the client property is shown in the Properties view for buttons and for subclasses of JButton. To specify multiple classes, separate them with commas. If not specified, the client property is shown for all JComponent components.
Value type The type of the client property value. You can select one of the common types (String, Boolean, Integer, etc) from the combo box or enter the class name of a custom type.
Predefined values If the value type is java.lang.String, then you can specify predefined values for the client property. When editing the client property in the Properties view, a combo box that contains these values is shown. The combo box is editable by default. Select the "Allow only predefined values" check box to make the combo box not-editable.
Property editor class Optional class name of a property editor that should be used when editing the client property in the Properties view.

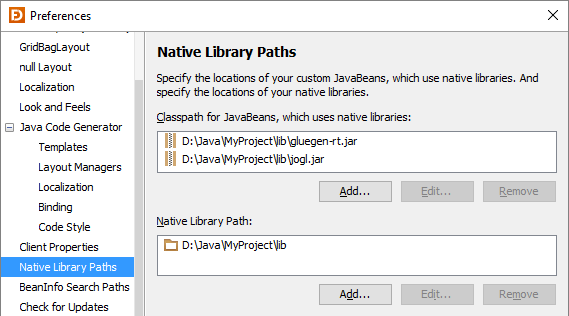

Native Library Paths

On this page, you can specify the locations of custom JavaBeans that use native libraries and you can specify the folders where to search for the native libraries.

Note: When removing or changing paths, a restart of JFormDesigner (or the IDE) is probably necessary to make the changes work.

Native Library Paths

Option Description
Classpath for JavaBeans, which use native libraries JAR files or folders containing .class files, which are using native libraries. They must be specified here to ensure that the native libraries are loaded from a special class loader only once.
Native Library Path Folders used to search for native libraries.

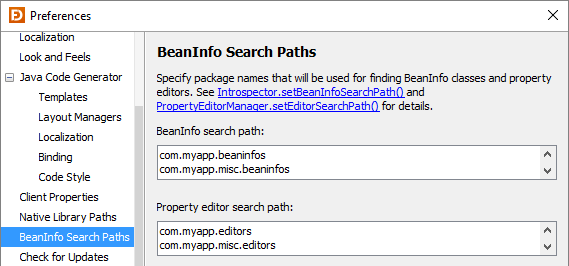

BeanInfo Search Paths

On this page, you can specify package names that will be used for finding BeanInfo classes and property editors.

BeanInfo Search Paths

Option Description
BeanInfo search path Package names that will be used for finding BeanInfo classes. Only necessary if the BeanInfo class is not in the same package as the component class to which it belongs. See java.beans.Introspector and Introspector.setBeanInfoSearchPath() for details.
Property editor search path Package names that will be used for finding property editors. Only necessary if the property editor is not in the same package as the property type to which it belongs. See java.beans.PropertyEditorManager and PropertyEditorManager.setEditorSearchPath() for details.

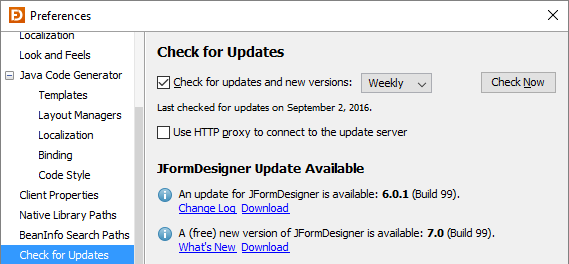

Check for Updates

This page allows you to specify whether JFormDesigner should check for updates and new versions. Click the "Check Now" button to check for updates immediately.

Check for Updates
